Hinges for Shower Booths• Indoor Tempered Glass Doors/ Hinges for Glass Doors
Top quality products of hinges for shower booths and indoor glass doors
Our own simple structure emphasizing safety, functionality and durability
These products can be applied to the shower booths of hotels or fitness clubs, interior doors, partitions and others for long period with an easy mind.

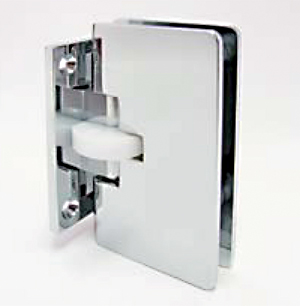

Hinges for fixing on wall
TTS-5001 (For glass having 8 mm thickness)
|
- Load capacity : 25 kg
- Maximum door width : 700 mm
- As the swing specification, we have 3 types of full swing type (open to 180°°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
- Screws and packing are attached.
|
TTS-5002 (For glass having 8 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
- Screws and packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
Hinges for fixing on corner of wall
TTS-5003 (For glass having 8 mm thickness)
|
- Load capacity : 25 kg
- Maximum door width : 700 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- Screws and packing are attached.
|
TTS-5004 (For glass having 8 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- Screws and packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
TTS-5008F (For glass having 0 ~ 00 mm thickness)
|
- Load capacity : 00 kg
- Maximum door width : 000 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- Screws and packing are attached.
|

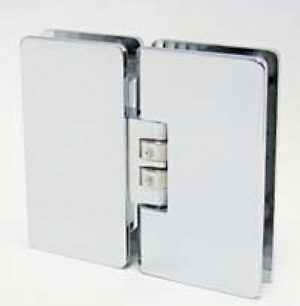

Hinges for fixing glass
TTS-5005 (For glass having 8 mm thickness)
|
- Load capacity : 25 kg
- Maximum door width : 700 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- Packing is attached.
|
TTS-5006 (For glass having 8 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
TTS-5008 (For glass having 8 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
TTS-5009 (For glass having 8 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
“For more details information, please refer the CAD data.”
- packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
Hinges for fixing on corner of wall (open to 90°)
TTS-5018 (For glass having 8 ~ 10 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- Screws and packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
Hinges for fixing on wall
TTS-50024 (For glass having 8 ~ 12 mm thickness)
|
- Load capacity : 40 kg
- Maximum door width : 800 mm
- As the swing specification, we have 3 types of full swing type (open to 180°) and inward opening type (90°+) and outward opening type (90°-) as single swing specification.
- Screws and packing are attached.
- In case of over-loading, please use it by 3 positions fixing.
|
