Gravity Hinges for Tempered Glass Doors/ Hinges for Glass Doors

The basic design is based on our own simple structure finish in taking into account safety and functionality, and toughness can be expected.

This hinge is designed to close automatically by its own weight. The door is risen by 5 mm by rolling for 90�'rom the static (closed) position. These products are finished by highly durable brass and extremely beautiful chromium plating finish. (Customized colors are also available.) We already applied repeated open and close test on this product for 600,000 times. We can use them reliably with almost no troubles such as making noise in prolonged usage. Application : Bath room, shower booth, indoor glass, partition and others

CAD Data DownloadClick here to our catalogues in PDF file (all products).

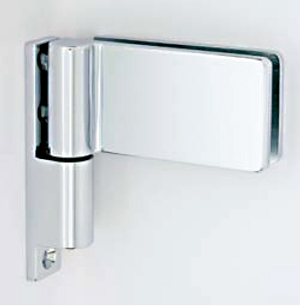

TTS-5011 (For glass having 8 ~ 12 mm thickness)
  • Load capacity : 30 kg
  • Maximum door width : 750 mm
  • Hinges for both left-hand door and right-hand door are available. (This figure shows the hinge for left-hand door.)
  • 5mm iso Screws and packing are attached.
  • In case of over-loading, please use it by 3 positions fixing.
Click here to our catalogues in PDF file

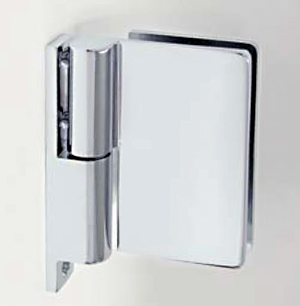

TTS-5013 (For glass having 8 ~ 12 mm thickness)
  • Load capacity : 40 kg
  • Maximum door width : 800 mm
  • Hinges for both left-hand door and right-hand door are available. (This figure shows the hinge for left-hand door.)
  • 5mm iso Screws and packing are attached.
  • In case of over-loading, please use it by 3 positions fixing.
Click here to our catalogues in PDF file

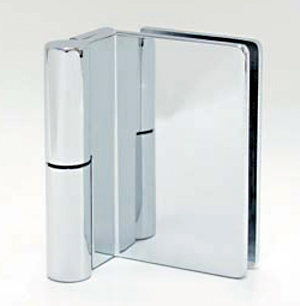

TTS-5016 (For glass having 8 ~ 12 mm thickness)
  • Load capacity : 40 kg
  • Maximum door width : 800 mm
  • Hinges for both left-hand door and right-hand door are available. (This figure shows the hinge for left-hand door.)
  • packing are attached.
  • In case of over-loading, please use it by 3 positions fixing.
Click here to our catalogues in PDF file

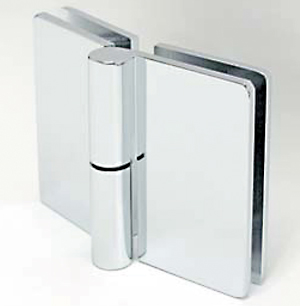

TTS-5014 (For glass having 8 ~ 12 mm thickness)
  • Load capacity : 40 kg
  • Maximum door width : 800 mm
  • Hinges for both left-hand door and right-hand door are available. (This figure shows the hinge for left-hand door.)
  • 5mm iso Screws and packing are attached.
  • In case of over-loading, please use it by 3 positions fixing.
Click here to our catalogues in PDF file
